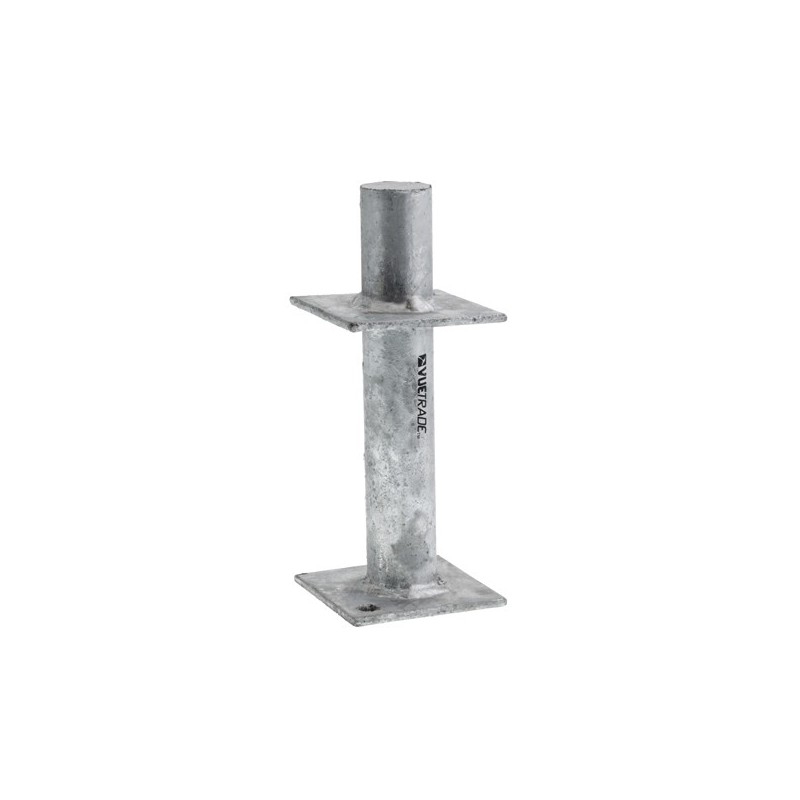

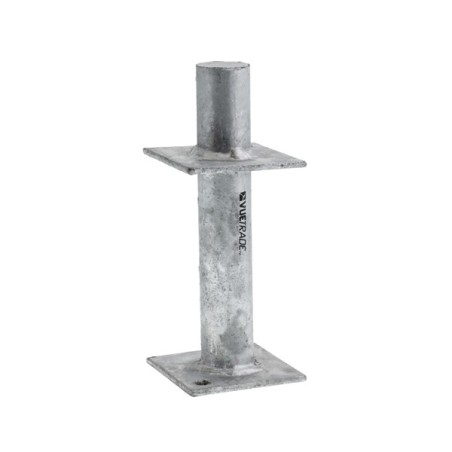

Post Support Centre Pin Stirrup - 125mm Leg

MS Sans Serif;MS Sans Serif;
;;
\*Riched20 10.0.19041
Hot Dipped Galvanised, 4.00mm Steel Saddle 32mm Solid Shaft
A pin stirrup post anchor for bolting onto and setting into concrete. A centre fix post support is perfect for applications where the post support needs to be totally concealed. A hole is made in the centre of the base of the post and placed over the pin, screws then fasten the post to the post anchor through the holes in the base. Please check with your engineer or consult our technical data as centre pin post anchors may not achieve the correct ratings for some applications.

4.00mm Thick Steel Saddle
32mm Solid Shaft
Bolt Holes
2 x M10 (Base of Saddle)
2 x M12 (Base)
Hot Dipped Galvanised
Welded Construction
